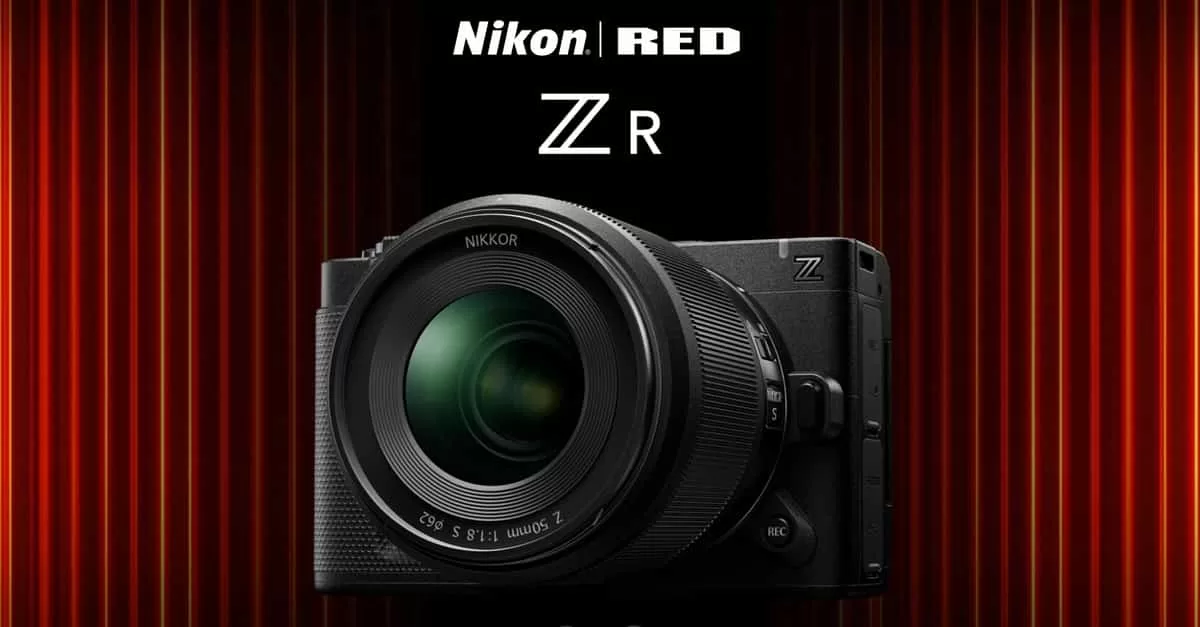

Nikon ZR Lab Results: Rolling Shutter, Dynamic Range & Latitude — What the Numbers Actually Mean for Your Shoots
Independent lab testing across REDCODE RAW NE, N-RAW, and ProRes RAW shows the Nikon ZR delivers excellent rolling shutter (as low as 9.4 ms FF / 6.3 ms APS-C), solid mid-pack dynamic range (~10–11+ stops in RAW by CineD SNR criteria), and about ~8 stops of usable latitude before images break apart. Caveat: R3D NE “highlight recovery” can reduce highlight headroom on faces unless you expose differently than you would for N-RAW/ProRes RAW.
Rolling Shutter
| Mode | Measured RS | Notes |
|---|---|---|
| Full-frame 6K (REDCODE RAW NE) | 9.4 ms | Excellent for this class—whip pans and straight lines hold together. |
| DX / APS-C crop | 6.3 ms | Encouraging for 120 fps work with minimal jello. |
These are strong results: handheld motion stabilizes well, and fast pans retain geometry better than many hybrids.
Dynamic Range (ISO 800) — By Codec
Method: DaVinci Resolve 20.2.1; codec-specific RAW controls; chroma NR disabled for RAW tests. H.265 N-Log shown for context only—its “DR” read is boosted by aggressive internal NR that squashes fine detail and isn’t a fair indicator of gradeable headroom.
| Codec | SNR=2 (stops) | SNR=1 (stops) | Notes |
|---|---|---|---|
| REDCODE RAW NE (FF 6K) | ~10.2 | 11.5 | IPP2 highlight recovery can nudge chart scores; high-freq noise retains detail. |
| N-RAW (FF 6K) | ~9.7 | 10.9 | Very close to Z6 III behavior. |
| ProRes RAW (FF 6K) | ~10.2 | 11.2 | Tracks R3D closely without IPP2 recovery bias. |
| H.265 N-Log (ISO 800) | 12.5 | 13.4 | Inflated by heavy in-camera NR; not representative of gradeable DR. |
Interpretation: DR is respectable but not class-leading. Expect a clean, detailed 10–11+ stops from RAW with natural roll-off—ample for doc/commercial/narrative, especially paired with the ZR’s low rolling shutter.
Exposure Latitude (How Far You Can Push in Post)
Method: Base exposure with foreheads at ~60% luma (CineD reference), then over/under; normalized in Resolve with CSTs to Rec.709.
- Usable latitude ceiling: ~8 stops total (e.g., +4/−4 on ProRes RAW or +2/−6 on R3D when compensating exposure to avoid early highlight recovery).
- At ~7 stops: moderate NR yields clean results for both R3D/PRR.
- At ~8 stops: NR is a compromise; R3D tends pink/cyan in deep shadows, PRR tends green/orange, N-RAW sits between.
- At ~9 stops: all three RAW flavors break (chroma blotches, plastic NR artifacts).
Context
- Panasonic S1 II (DR Boost ON): up to ~10 stops latitude (with higher rolling shutter).
- Sony A9 III (global shutter): ~9 stops on 10-bit internal.
- ARRI ALEXA 35: ~12 stops latitude benchmark.
The R3D NE Highlight-Recovery Gotcha (and How to Shoot Around It)
What happens: In the ZR’s R3D NE pipeline (IPP2 / RWG Log3G10), highlight recovery can blend R+G channels before actual clipping on bright skin, pushing it yellowish even when channels are intact.
- Rate/expose R3D ~1 stop lower than ProRes RAW / N-RAW when protecting faces in bright scenes.
- Prefer ProRes RAW / N-RAW for specular-heavy scenes; use R3D NE for lower-contrast work or when you want IPP2 tonality.
- In Resolve: confirm whether “Highlight Recovery” and WB moves are merging channels; back off exposure or WB to preserve channel separation on skin.
What It Means on Set
- Action & handheld: 9.4 ms / 6.3 ms RS values are best-in-class-adjacent; pan faster and stabilize with less jello.
- Real DR: 10–11+ RAW stops are cinema-credible at this price—just not a latitude monster like S1 II (Boost) or ALEXA 35.
- Choose your RAW per scene:
- High-contrast faces/speculars: ProRes RAW or N-RAW (more forgiving highlights at the same light level).
- Controlled contrast / IPP2 look: R3D NE—rate it lower or pull a stop to avoid early “recovery” on skin.
- Don’t trust H.265 N-Log DR charts: they’re boosted by internal NR; fine for quick turnarounds, not ideal for deep grades.
Recommended Baseline Settings (Resolve 20.2.1)
- R3D NE: IPP2 (RWG/Log3G10). Leave Highlight Recovery OFF unless truly clipped; watch per-channel scopes near key on Caucasian skin.
- ProRes RAW / N-RAW: Use Camera RAW controls; CST to DaVinci Intermediate/WG → Rec.709; apply gentle chroma NR only when pushing ≥ ±3 stops.
- Noise Reduction: Temporal 2–3 frames / 10–15%, small Spatial touch for chroma; avoid heavy NR beyond ±4 stops if you want to preserve detail.
Who Should Consider the Nikon ZR?
- Owner-operators who want internal RAW choice (R3D NE / N-RAW / ProRes RAW) and excellent motion rendering at a wallet-friendly price.
- Doc/commercial shooters needing a compact body with clean 120 fps in a crop mode and predictable color.
- Teams in RED ecosystems who like IPP2 tonality and want a budget B-/C-cam—accepting the exposure nuance for R3D on faces.
Price & Availability
Nikon ZR 6K Cinema Camera: $2,196.95 / €2,107.77 (ex-VAT). Pricing fluctuates—check dealers for current offers.
